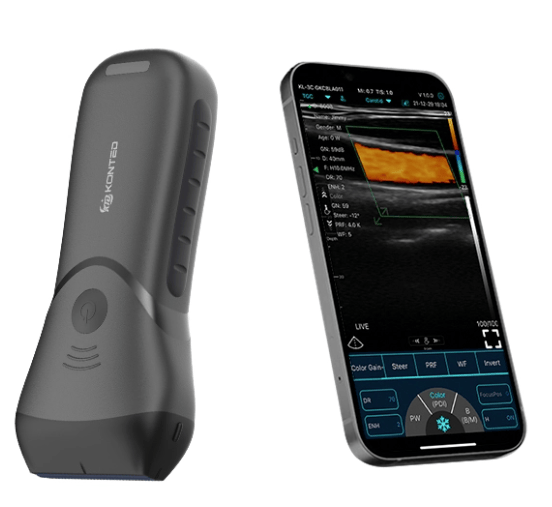

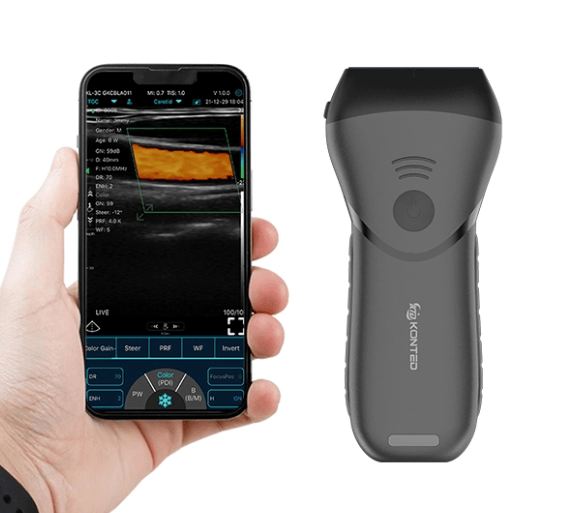

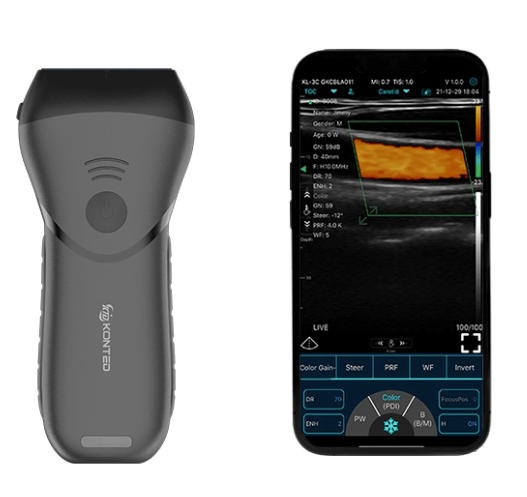

C10MX Superficial Linear Hand-Held WiFi & USB Ultrasound
The C10MX is a professional handheld linear ultrasound probe for superficial scanning. Its 7.5-10MHz frequency range delivers accurate, detailed imaging, and built-in Wi-Fi sends images straight to your phone, tablet or PC.
This lightweight, portable scanner is designed for efficient use in medical clinics. Download the Wireless US app to your device and start scanning. It is well suited to MSK and small parts applications.
C10MX 7.5-10MHz Handheld Ultrasound Linear Probe
Please note this item is for Pre-order. Please allow 10-14 days shipping for delivery to your address.
Suggested Applications for the C10MX
Musculoskeletal
- Tendons and ligaments (rotator cuff, Achilles, patellar, biceps)
- Muscle tears and strains
- Joint effusion and soft tissue swelling
- Bursae and superficial soft tissue masses
Vascular
- Peripheral vein assessment and DVT screening
- Superficial vein mapping
- Carotid and peripheral artery assessment
- Colour Doppler and PW Doppler for blood flow evaluation
Small Parts
- Thyroid
- Superficial lymph nodes
- Salivary glands
- Scrotal and testicular
- Breast
Superficial and Aesthetic
- Skin and subcutaneous tissue assessment
- Cysts, lipomas and superficial lumps
- Facial aesthetics imaging
Paediatric
- Paediatric musculoskeletal and soft tissue
- Neonatal hip and superficial structures
Point-of-Care
- Foreign body detection
- Abscess and soft tissue infection assessment
- Bedside use in clinic, sports medicine and physiotherapy settings
How Does It Work?
The scanner connects by Wi-Fi to your iPhone, iPad, Android device or Windows PC. Find the probe in your Wi-Fi settings, open the app, and you're ready to scan. There is no licence fee or ongoing subscription costs.
Functions
- Access features usually found on larger systems, such as gain and depth
- Steer function in colour mode
- Biopsy mode with adjustable needle angle guide lines for clinical procedures
- On-screen measurements using calliper tools
- Save images or cine loop videos to your device memory or photo library
Portable Linear Wi-Fi Ultrasound Probe Details
- 8 TGC and adjustable dynamic range
- Switchable speckle reduction
- Frequency selectable between 7.5 and 10MHz
- Wi-Fi connection (iOS, Android and Windows)
- USB cable connection (Android and Windows)
- Presets: Thyroid, Small Parts, Paediatrics, Vascular, Carotid, Breast, MSK, Nerve, Vessel Flow, Aesthetics, User 1, User 2
C10MX Superficial Ultrasound Linear Probe Specifications
Built specifically for superficial imaging, the C10MX offers the resolution advantages of a dedicated linear array.
Key Features
- Works with a tablet or smartphone
- Built-in, replaceable battery
- Advanced digital imaging for clear images
- Cost-effective handheld ultrasound
- Wireless connectivity for easy operation
- Compact design for emergency, clinic or vet use
- Intelligent platform for image storage and communication
Specifications
- Display: Android, iOS or Windows 10
- Frequency: 7.5-10MHz, switchable
- Scanning mode: L45 linear array, 128 elements, 32 channels
- Depth: adjustable 20 / 40 / 60 / 100mm
- Grey scale: 256 levels
- Display modes: B, B/M, Color, PW, PDI, B+B
Interface Display
- Adjustable gain and 8 x TGC
- Adjustable depth and edge enhancement
- Adjustable dynamic range and frequency
- Centreline and body marks
- Dual screen and measure zoom
- Full screen button
- Presets: Thyroid, Small Parts, Paediatrics, Vascular, Carotid, Breast, MSK, Nerve, Vessel Flow
Measurements
- B: length, area/circumference, angle, trace, distance
- B+M: heart rate, time, distance
- B+PW: velocity, heart rate, S/D, depth
- Automatic Vessel Flow: PS, ED, TAMEX, TAMEAN, PI, RI, S/D, diameter, FL
More C10MX Specifications
- Recharge time: 2-3 hrs via USB cable or Wi-Fi charger
- Dimensions: 140 x 62 x 30mm
- Weight: 220g
- Wi-Fi: 2.4G / 5G, or USB cable (Android and Windows)
System Requirements
- Apple iOS: iOS 11.0 or later
- iPhone: iPhone 7 to 13 series or later
- iPad: iPad Air 2, iPad Mini 5, iPad Pro series or later
- Android: Android 14 or later
- Windows: Windows 10 / 11
ARTG: 407353
