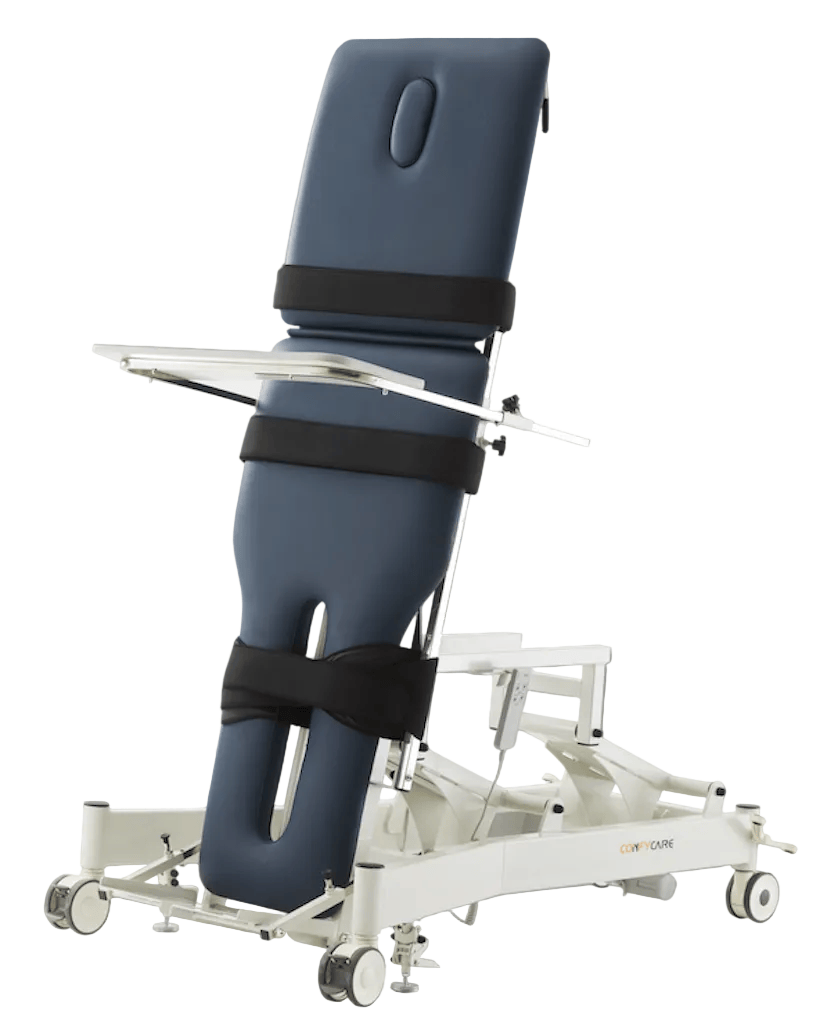

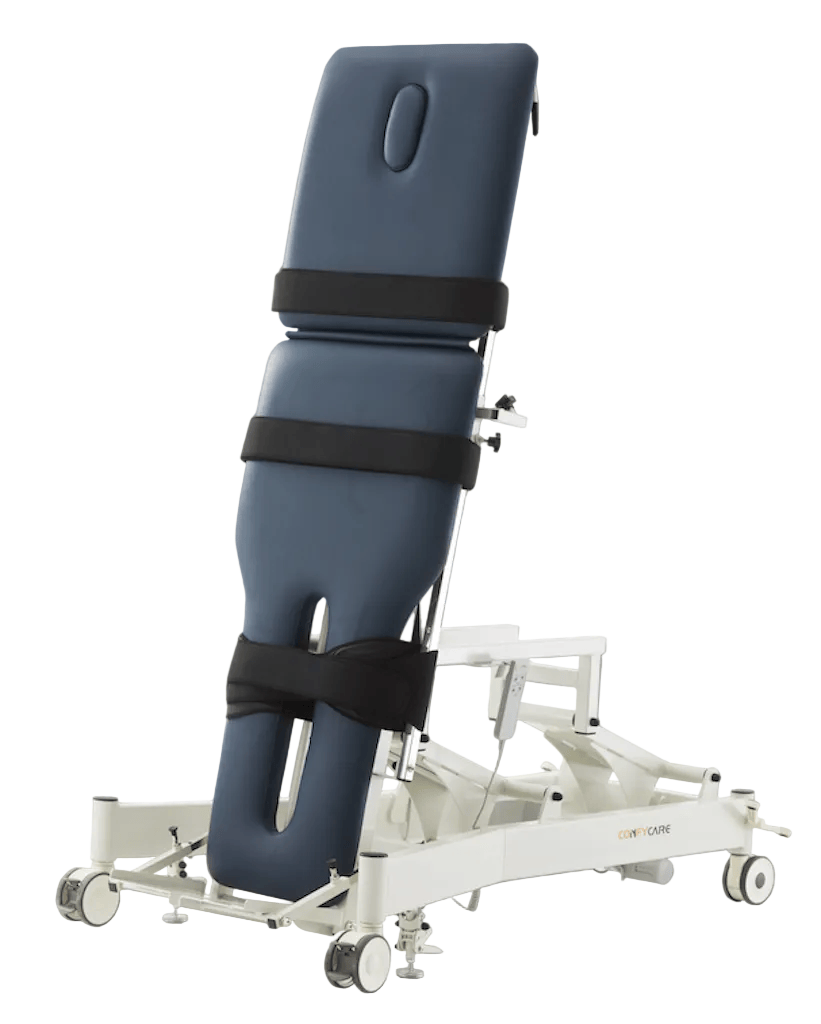

Pacific Medical Tilt Table

$3,395.00 AUD
(GST Included)
Available for pre-order

The Pacific Electric Tilt Table offers rehabilitation and physiotherapy options through its adjustable tilt table and standing table. Perfect for vascular scanning and other treatments, it offers a safe, reliable way to achieve your desired results.

Pacific Tilt table has excellent functions for both examination & treatment work.

Pacific Tilt table is mainly used in for treatment of the nervous system with weakness, pain, muscle spasm, auxiliary training to rehabilitation purposes; hemiplegia, paraplegia and traumatic brain injury and other severe patients to resume standing training. It provides -2° tilting, adds to be used to diagnose dysautonomia or syncope,

Pacific Tilt table bed can also be used for long-term bedridden patients, to prevent the rise of orthostatic hypotension.

This item also provide a Hi-Lo function for different situation, such as wheels chairs changing and professional therapy.

Pacific Medical Tilt Table Features:

  1. Two electric motors, Height adjustment & Tiling.
  2. Lift for height variation and tilting by double foot switches.
  3. Adjustable tiling featuring single motor and double gas struts, angle adjustable from 0° to +85°.
  4. Inclinometer for measuring tilt angle
  5. Back rest section is manually adjusted with double gas lift struts from horizontal to 70 degress.
  6. Accessories: adjustable belts (3 pcs), adjustable foot plate, active table adjustable
  7. Tilt table bed is able to lift up to 180kg working weight from its lowest height.
  8. Retractable castors 75mm for excellent mobility and safety.
  9. Fire/stain/mildew/oil/water/wear resistant Med PVC.
  10. Table goes horizontal for people recovery in emergency situations.
Pacific Medical Tilt Table Specifications:
  • Upholstery Length: 1940mm
  • Upholstery Width:640mm
  • Adjustable Height: 50mm–1040mm
  • Backrest section is: 660mm long and manually adjusts with gas lift to 70 degrees.
  • Foot platform rotates 180 degrees when not in use under the upholstery.
  • Maximum width of frame at widest part: 90cm
  • Foam Thickness:4cm
  • Foam Density:36g/m2



Shipping dimensions: 209x91x64cm


Warranty: 5 years structural, 3 Years electrical.
