Peaksonic M3 Hand-Held Wi-Fi BladderView Scanner
The PeakSonic Bladderview M3 is a portable, handheld device designed to measure bladder volume accurately. It is ideal for use in Surgery, Emergency, ICU, Obstetrics, Gynecology, radiotherapy, and long-term care settings. This scanner supports clinical decisions for catheterization, assesses post-void residual urine, and aids in diagnosing bladder and kidney conditions. It is especially beneficial for patients with lower body impairments or impaired urinary control, helping determine the optimal timing for urination.
Peaksonic M3 portable BladderView Scanner
TGA Registered: ARTG457830

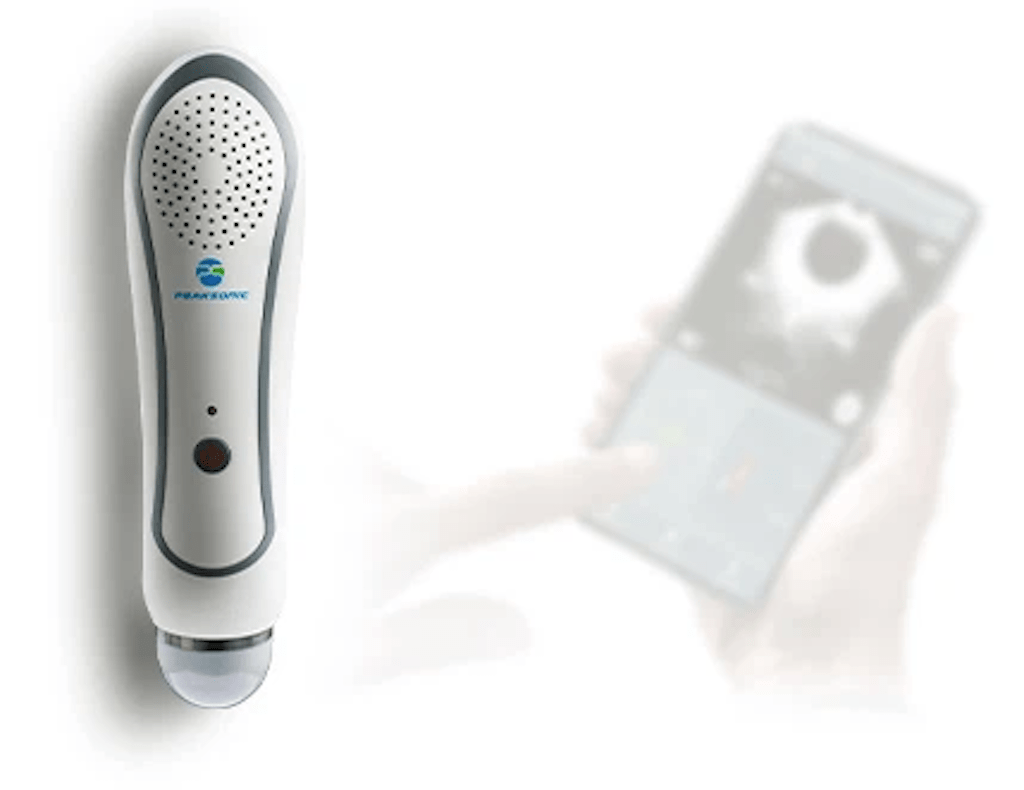

Peaksonic Bladderview M3 is a noninvasive bladder volume instrument developed by applying 2D ultrasound imaging technology and measurement principle. The key components of the device are a probe and a smartphone or a tablet PC.
PeakSonic M3 bladder scanner is connected with mobile phone or tablet through WiFi, and image and data are displayed through APP. It has many functions, such as multi-mode, easy operation, large amount of data storage, historical data review, wireless transmission, etc. M3 is one of the few portable bladder volume instrument which can transmit images wirelessly on the market.
A Peaksonic M3 bladder scanner is a non-invasive, portable ultrasound device that provides a virtual 2D image of the bladder and the volume of urine retained within the bladder. Retained urine is a reservoir for bacteria and pathogens, which can cause urinary tract infections, leading to damage of the renal structures, pain, and sepsis.
Bladder scans are commonly utilised in acute care, long-term care, and rehabilitation environments, as well as in physicians' offices. Without the use of a bladder scanner, urinary retention is assessed by performing an invasive "in and out" urinary catheterisation, which can be uncomfortable and pose a direct risk of introducing more pathogens into the bladder, increasing a patient's risk of infection.
Peaksonic M3 BladderView Scanner Features.
- Noninvasive urinary bladder volume measurement.
- Two modes selection: Easy and Expert Mode.
- Rapid scanning measurement result available within a few seconds.
- Easy to learn and use. Quick and precise bladder scan can be easily accomplished.
- One bladder scan image, patient information and bladder volume values are printable.
- User friendly capacitive touch screen.
- Internal storage on phone or tablet PC.
- Bladder volume preset alert.
- Multiple language selection.
- Big data storage space: more than 10,000 cases can be stored.
- Chargeable battery, light-weighted, easy to carry, long operation and standby time.
- Patient information management software installed for reviewing, editing and printing.
- Patient history information review.
- WIFI connection to mobile phone or tablet PC.
- Reduce unnecessary catheterization.
- Prevent CAUTI (Catheter Associated Urinary Tract Infection).
- Identify different types of urinary incontinence to determine the proper nursing.
- Beneficial for the post-operative recovery.
- Cost efficiency and save inspection time.
- No calibration required.
Bladderview M3 Bladder Scanner Specifications
- 2D scan
- Frequency of Probe: 2.5 MHz.
- Volume Measurement Range: 0 - 999 ml.
- Monitor Size: Touch screen Display
- Operation Mode: Easy and Expert
- Printer Mode: Bluetooth printing
- Battery Capacity: 2400 mAh.
- Data transmission: USB/Wi-Fi
- Data Storage: Internal Storage on your own device
- Weight: 300 g
- Battery Continuous Scanning Time: 2.5 hours.
- Battery Stand By Time: > 4:20min hours.
- 24 month warranty
